EHC SlimJim Electric Flow Boiler 10kW
EHC SlimJim Electric Flow Boiler 10kW
Product Description
The EHC SlimJim 10kW Electric Flow Boiler is a highly efficient, fully-electric central heating solution designed for properties where space and flexibility are crucial. Its compact, wall-mounted form makes it ideal for small homes, flats, studios, garden offices, or areas where gas is unavailable. The 10kW output is suitable for wet radiator systems and underfloor heating, supporting both open-vented and sealed settings. This model is virtually silent in operation and offers advanced safety and easy user controls.
- 100% efficient at point of use – no flue, condensate, or emissions
- Compact, slimline design: 912 × 203 × 172 mm; only 11 kg
- Silent running for discreet installation in cupboards or utility areas
- Compatible with radiators and wet underfloor heating
- Can be used for central heating only, or with an indirect cylinder for domestic hot water (“S” or “Y” plan)
- Easy-to-use front panel with temperature control dial (30–80°C), status and diagnostic LEDs

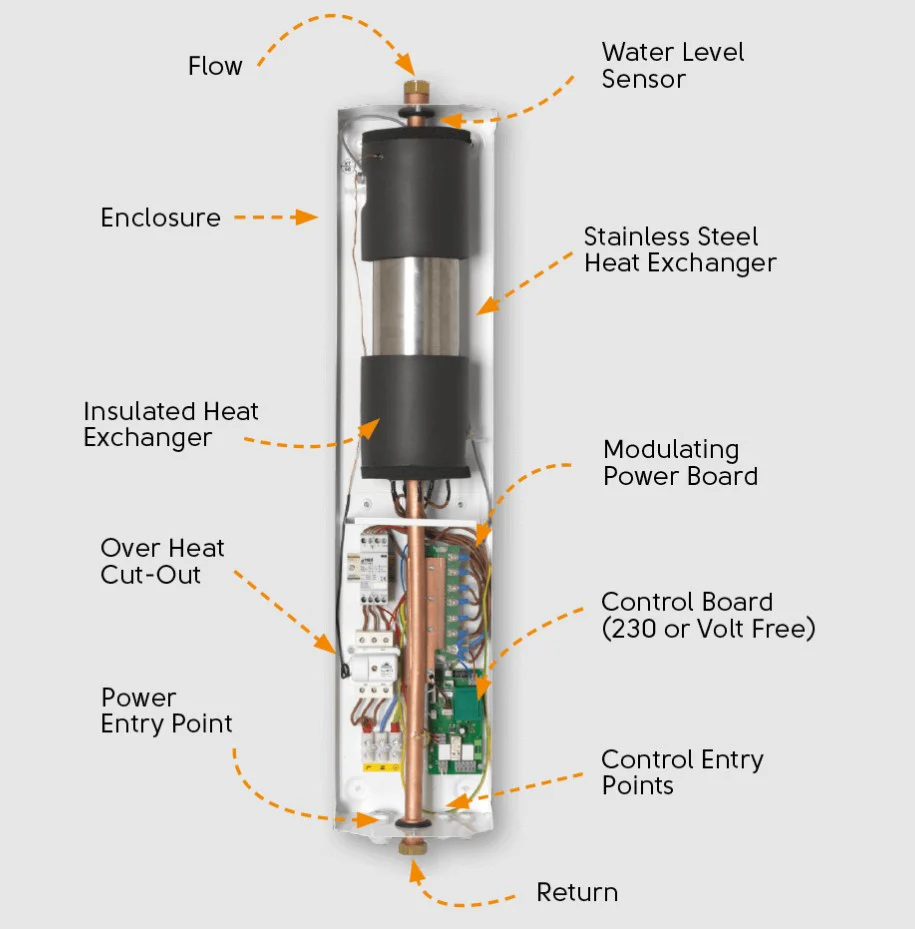

- Stainless steel, insulated heat exchanger for minimal energy loss
- Unique Run-Dry Water Level Sensor protects the heat exchanger from running dry
- High current thermal cut-out for safety and soft start to avoid power surges
- No annual service required; low maintenance
- 5-year manufacturer’s warranty (upon registration)
Key Technical Specifications
| Model | EHCSJIM10KW |
| Output | 10 kW |
| Voltage / Phase | 230V, Single Phase |
| Current (Max) | ~42A |
| Dimensions (HxWxD) | 912 × 203 × 172 mm |
| Weight | 11 kg |
| Temperature Range | 30–80°C |
| BTU Output | 34,121 |
| Mounting | Wall |
| Energy Class | ErP D |
| Warranty | 5 years (registration required) |
| System Compatibility | Open-vented or sealed circuits |
Electric Flow Boiler Applications
- Small to medium homes, flats, garden offices, or properties without gas
- Wet radiator and underfloor heating systems
- Optional integration with indirect hot water cylinders (“S” or “Y” plan)
- Installations needing a discreet, compact, and virtually silent solution
What's Included?
- EHC SlimJim 10kW Electric Flow Boiler (EHCSJIM10KW)
- User and installation manual
Why Choose EHC SlimJim 10kW?
- 100% efficient and zero local emissions
- Space-saving, silent, and easy to install and maintain
- Robust safety features including Run-Dry water level sensor
- 5-year manufacturer warranty for long-term peace of mind
