Grundfos SCALA2 Integrated Water Booster Pump – Compact and Intelligent Pressure Boosting Solution
Grundfos SCALA2 Integrated Water Booster Pump – Compact and Intelligent Pressure Boosting Solution

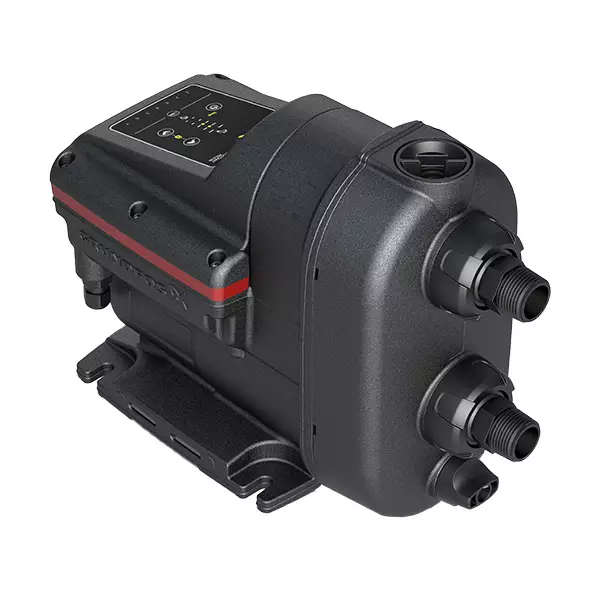

The Grundfos SCALA2 is a fully integrated, self-priming water booster pump designed to provide perfect water pressure to all taps throughout domestic properties, even when multiple taps and showers are used simultaneously. This compact all-in-one unit combines pump, motor, tank, sensor, drive, and non-return valve, enabling quick and easy installation while delivering consistently stable water pressure.
Why Buy the SCALA2 Integrated Water Booster Pump?
- Intelligent Pump Control: Continuously adjusts performance based on inlet pressure and water demand to maintain constant pressure at all water points.
- Water-Cooled Permanent Magnet Motor: Efficient and quiet operation with noise levels as low as 47 dB(A), suitable for indoor and outdoor use.
- Self-Priming: Can pump water from a depth of up to 8 meters, allowing flexible installation options.
- Dry Running and Thermal Protection: Automatically stops the pump to prevent damage in cases of dry running or overheating, with automatic reset options.
- Compact Design: Fits easily inside kitchen cupboards or utility spaces, providing a neat solution without bulky equipment.
- Wide Applications: Boosts pressure from mains, roof tanks, ground tanks, wells, and rainwater harvesting systems.
- Simple Operation: User-friendly control panel with easy installation and maintenance-free performance.
- Reliable and Durable: Quality tested for long life and backed by manufacturer support.
Suitable For
- Domestic properties up to 3 floors with up to 8 taps requiring stable, boosted water pressure.
- Homes relying on mains water, tanks, wells, or rainwater for water supply.
- Situations where quiet, energy-efficient, and compact pressure boosting is necessary.
- Installations needing quick and easy plug-and-pump setup without complicated plumbing.
Technical Specifications
| Feature | Specification |
|---|---|
| Maximum Head | 45 metres (147 feet) |
| Maximum Flow Rate | 3,500 litres per hour (58.3 litres per minute) |
| Maximum Inlet Pressure | 6 bar (87 psi) |
| Maximum System Pressure | 10 bar (145 psi) |
| Liquid Temperature Range | 2°C to 45°C (recommended max 45°C) |
| Power Input | Up to 550 W |
| Voltage | 115 V or 230 V options |
| Noise Level | 47 dB(A) typical |
| Protection Class | IPX4D |

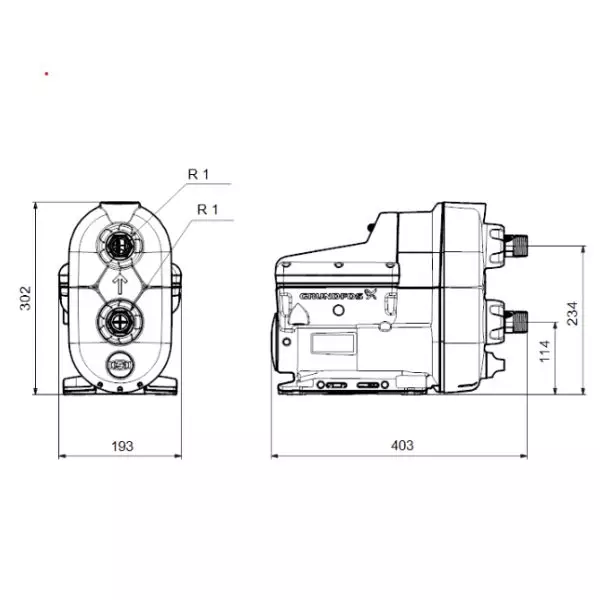

| Dimensions (L x W x H) | 403 x 193 x 302 mm |
| Weight | Approx. 9.5 kg |
| Features | Intelligent pump control, integrated tank, sensor, non-return valve, self-priming |
MPN: SCALA2
EAN: 5710618499274
