Jinko Tiger Neo 2.0 460W All black Dual Glass TOPcon with HOT 3.0

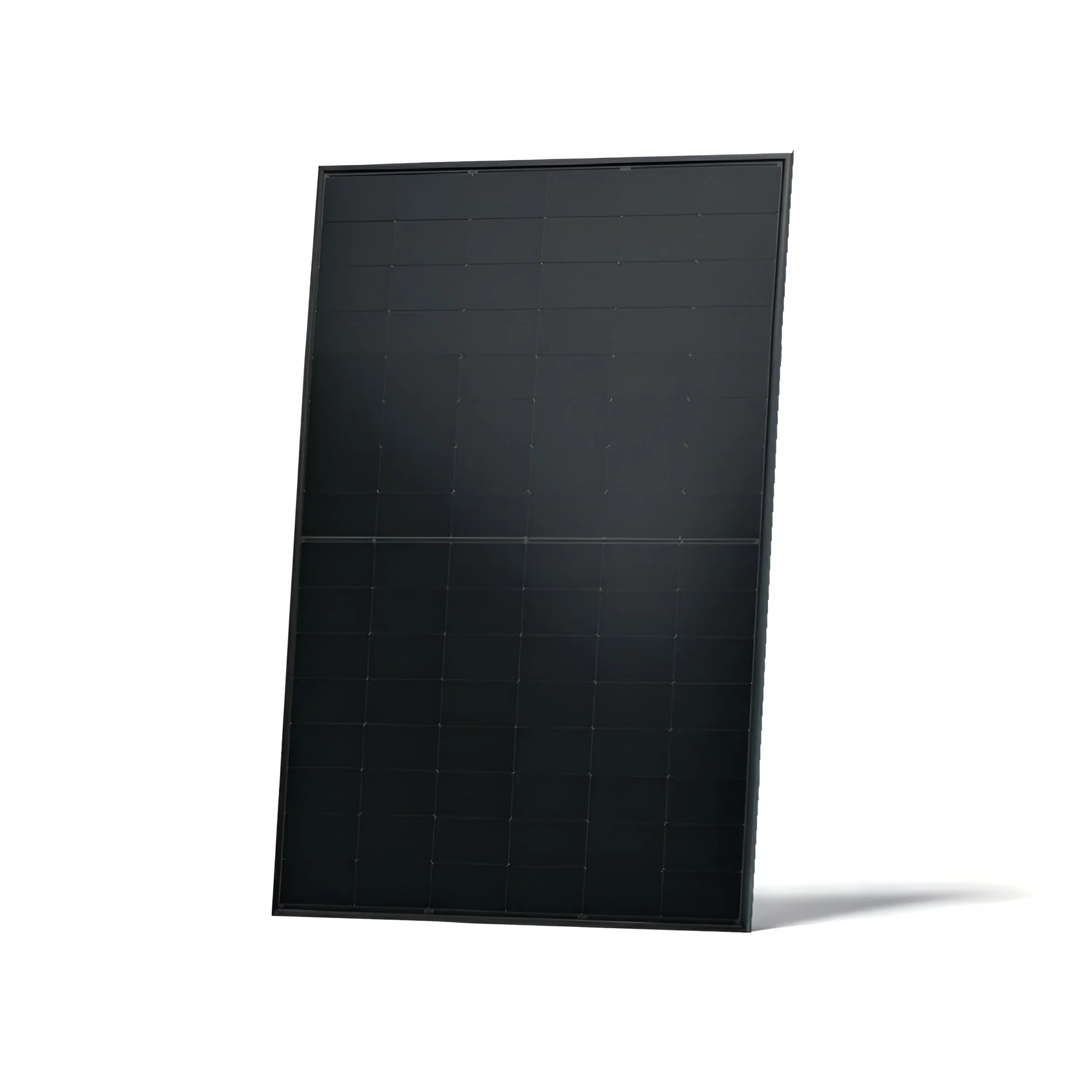

The Jinko Tiger Neo 2.0 460W All Black Dual Glass TOPCon with HOT 3.0 (JKM460N-48HL4M-DB) is an N-type monocrystalline solar panel featuring advanced TOPCon technology for superior efficiency and durability in residential and commercial installations.
Product Description
This all-black dual-glass module utilises 48 half-cells with Jinko's HOT 3.0 technology, SMBB contacts, and SMA cell interconnect for enhanced low-light performance and PID resistance. Offering 23.01% efficiency, it provides high power density with robust mechanical and environmental resistance.
Key Features
- N-type TOPCon cells: Lower LID/LeTID degradation for long-term reliability.
- HOT 3.0 technology: Improved efficiency and bifaciality.
- Dual glass design: Enhanced durability against PID, salt mist, and ammonia.
- Mechanical load: 6000 Pa snow, 4000 Pa wind.
- All-black aesthetics: Premium visual appeal for rooftops.
- Certifications: IEC, MCS, Class C fire rating.
Electrical Specifications
- Nominal power (STC): 460 Wp.
- Efficiency: 23.01%.
- Open circuit voltage (Voc): 36.36 V.
- Short circuit current (Isc): 15.91 A.
- Max power voltage (Vmpp): 30.61 V.
- Max power current (Impp): 15.02 A.
- Temp coefficient Pmax: -0.29%/°C.
- System voltage: 1500 V DC.
Physical Specifications
- Dimensions (L Ă— W Ă— H): 1762 Ă— 1134 Ă— 30 mm.
- Weight: 24 kg.
- Cells: 96 (48 half-cells), N-type monocrystalline.
- Glass: 2.0 mm heat strengthened front/back.
- Frame: Black anodised aluminium.
- Connectors: JK03M / MC4 EVO2, 1200 mm cables.
Warranties & Applications
- Product warranty: 25 years.
- Linear power warranty: 30 years (87.4% at year 30).
- Applications: Residential rooftops, commercial arrays, bifacial potential.
