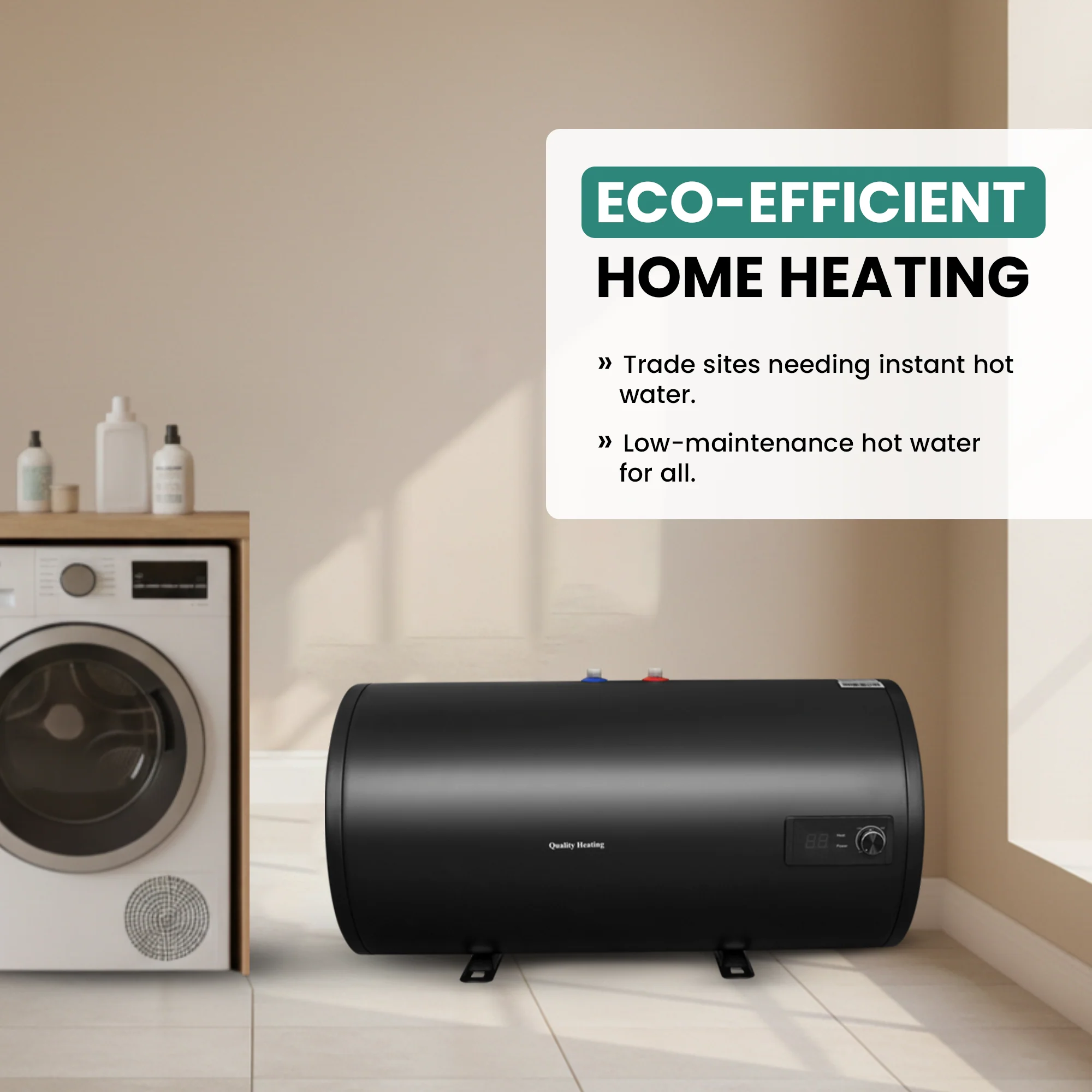

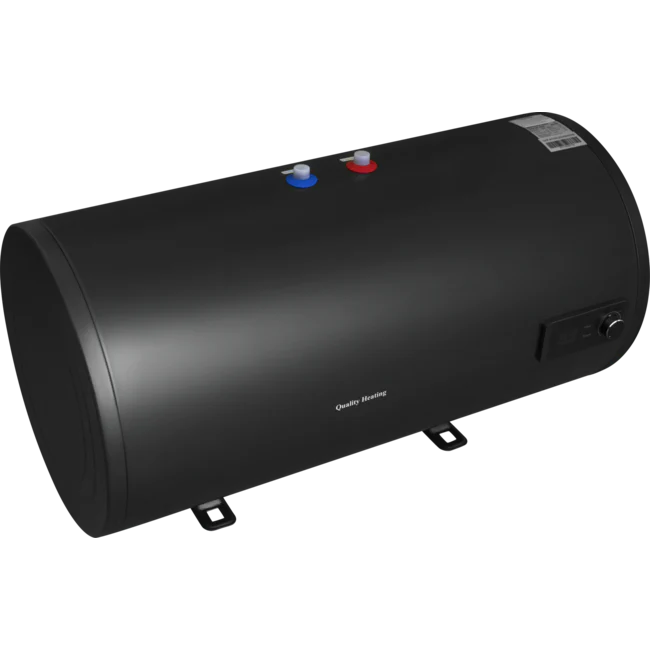

100 Litre QH Dual Horizontal Floor-Standing Electric Water Heater
Floor-Standing100 LitresNo Wall Fixings Required

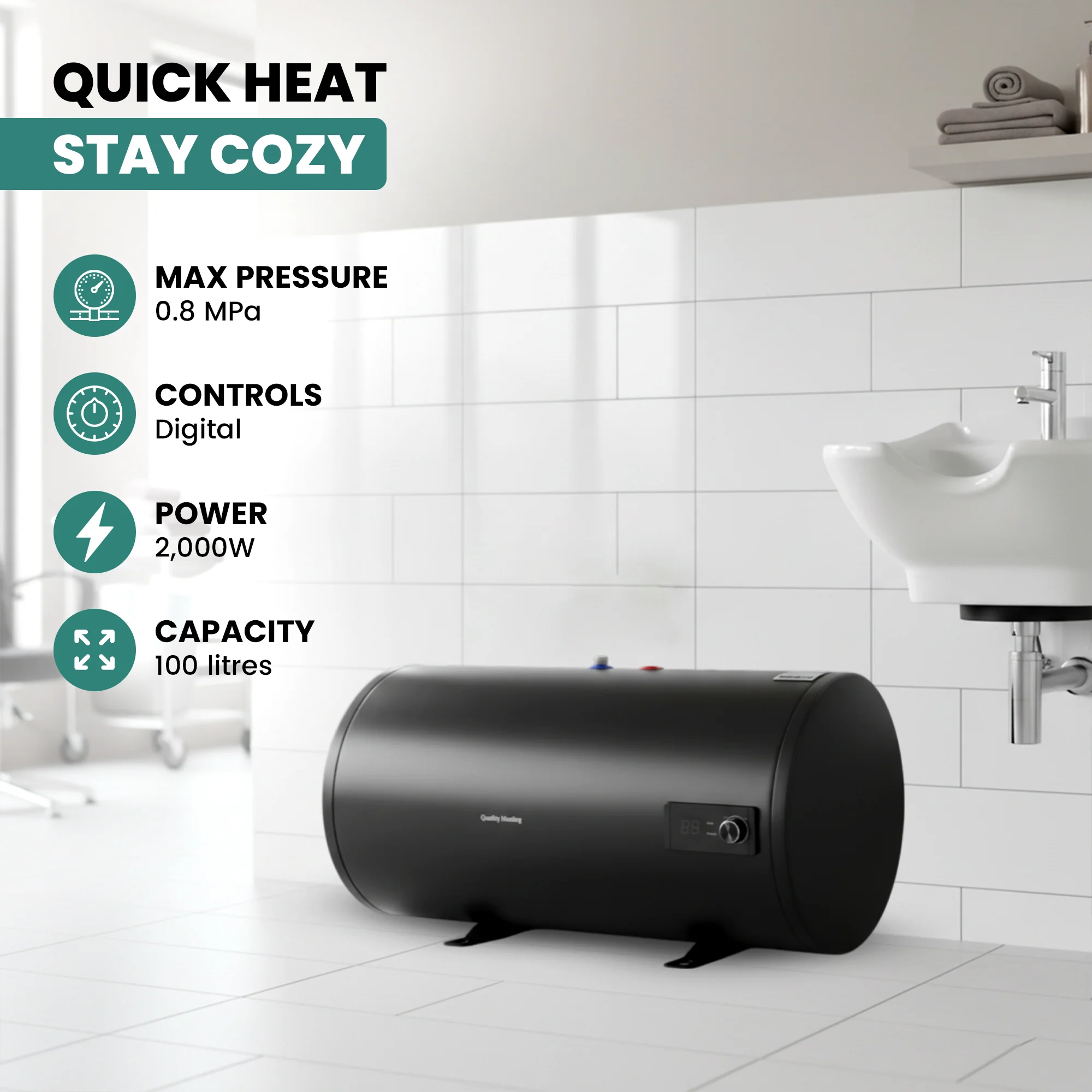

The Quality Heating QH Dual 100 Litre Floor-Standing Electric Water Heater is a large-capacity, freestanding cylinder designed for properties where wall-mounting is not practical — whether due to wall construction, accessible housing requirements, or plant room layout. Part of the premium Extra Life series, it delivers Energy Class B efficiency with a 2,000W copper element and 40 mm foam insulation in a compact cylindrical format.
With a 100-litre capacity, this floor-standing unit comfortably supplies hot water to 2–3 occupants. The cylindrical footprint (Ø 450 mm) is compact enough for a corner position in a utility room or plant room, while the 895 mm height keeps it accessible for maintenance. It stands upright on its base — no wall bracket required — making installation straightforward on almost any floor surface.
Why Buy the QH Dual 100L Floor-Standing Electric Water Heater?
Suitable For
Product Description
The QH Dual 100L floor-standing cylinder stores 100 litres of water. When heated to 65°C and blended to a comfortable 37°C shower temperature, the unit delivers approximately 174 litres of usable hot water per cycle — enough to comfortably serve 2–3 occupants with bathroom, kitchen, and laundry use throughout the day without reheating mid-cycle.

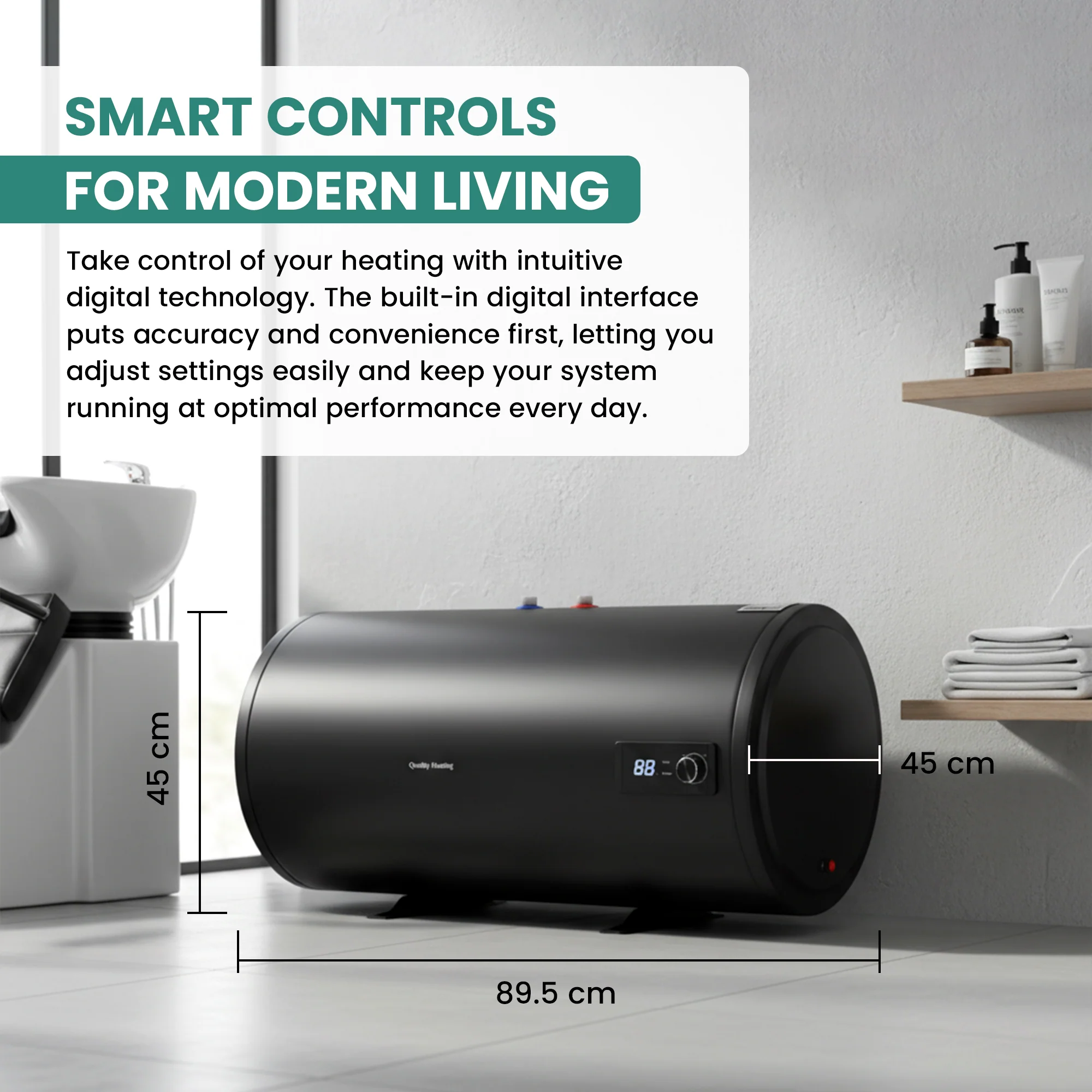

The cylindrical body (Ø 450 mm × 895 mm tall) stands upright without any wall fixings, resting stably on its own base. This makes it a practical choice for installations where load-bearing wall space is unavailable — such as lightweight timber-frame constructions, accessible housing where walls are already occupied by grab rails or equipment, or commercial properties where flexible layout matters.
The copper heating element, zirconium-enamel inner vessel, and 40 mm polyurethane foam insulation jacket are consistent with the QH Extra Life series, offering durability well above the standard market. The magnesium sacrificial anode includes an audible and visual condition alarm — one of the few cylinders in this price range to feature this. The supplied PRV and six-level safety system meet all UK installation requirements straight out of the box.

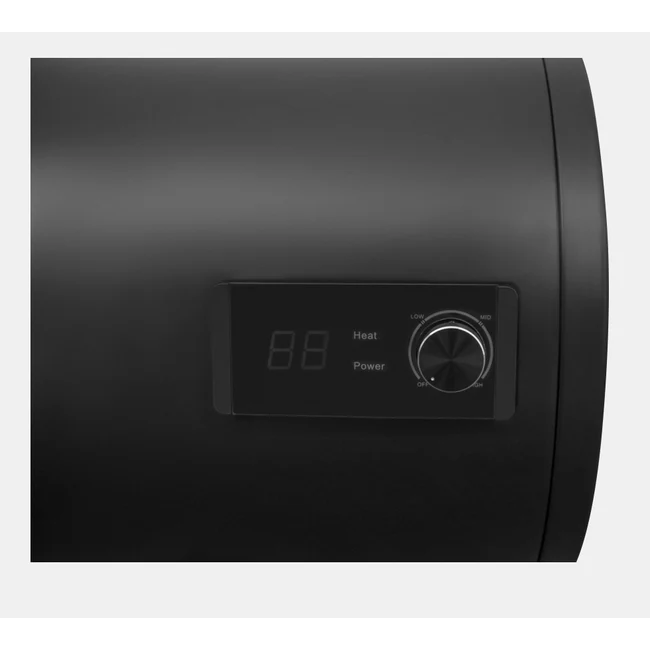

The digital display, adjustable thermostat, and illuminated on/off switch are clearly positioned and accessible at the front of the unit, making operation and temperature adjustment easy without moving the cylinder or accessing the rear of a cupboard.
Electric Water Heater Key Features
- 100-litre capacity — approx. 174 litres of usable blended hot water per cycle at 37°C
- Floor-standing — no wall fixings required
- 2,000W copper heating element — fast heat-up, durable, scale-resistant
- Energy Class B — efficient standby performance
- Zirconium-enamel inner vessel — superior corrosion resistance
- Magnesium sacrificial anode with audible/visual condition alarm
- 40 mm polyurethane foam insulation (λ = 0.22 W/mK) — less than 0.2°C/hr standby loss
- Compact cylindrical footprint — Ø 450 mm base × 895 mm tall
- Digital display with adjustable thermostat and illuminated on/off switch
- Six-level safety system — PRV (safety valve) supplied as standard
- 230V / 50Hz — 1.5 m lead with 13A plug (removable for hardwiring)
- CE marked & 2-year manufacturer warranty
Technical Specifications
| Specification | Detail |
|---|---|
| EAN / SKU | 8721154887782 |
| Capacity | 100 litres |
| Rated Power | 2,000W |
| Voltage | 230V / 50Hz |
| Energy Label | Class B |
| Heating Element Material | Copper |
| Inner Vessel Coating | Zirconium-enamel |
| Anode Material | Magnesium (with audible & visual condition alarm) |
| Insulation Thickness | 40 mm polyurethane foam |
| Thermal Conductivity (λ) | 0.22 W/mK — less than 0.2°C/hr standby loss |
| Diameter | Ø 450 mm |
| Height | 895 mm |
| Usable Hot Water Yield (blended at 37°C) | Approx. 174 litres per cycle |
| Mounting / Installation | Floor-standing (upright, no wall fixings required) |
| Cable Length | 1.5 m |
| Electrical Connection | 13A plug (removable for hardwiring) |
| Safety Features | 6-level protection; PRV (safety valve) included |
| Controls | Digital display, adjustable thermostat, illuminated on/off switch |
| Certification | CE marked |
| Warranty | 2 years |
Installation & Trade Notes
This Electric Water Heater unit is floor-standing — place it upright on a flat, level, structurally sound floor surface. No wall bracket is required, though it is advisable to ensure the cylinder cannot be displaced in high-traffic areas. The supplied PRV must be fitted and plumbed to a safe, visible, frost-free discharge point in compliance with Water Regulations and Building Regulations Part G.
All electrical work must be carried out by a Part P-registered electrician. Connect via a 13A fused spur or remove the plug for hardwired connection; the circuit must be protected by an RCD. Water connections are ¾" BSP — a Pentec UBIC or equivalent inlet combination valve is strongly recommended and available separately. Flush the cylinder before commissioning and set the thermostat to a minimum of 60°C to comply with HTM 04-01 Legionella guidance.
Frequently Asked Questions
Does this cylinder need to be fixed to a wall?
No — it is freestanding and stands upright on its own base. No wall fixings are required, though the floor must be flat and level. It's advisable to position it where it won't be disturbed in day-to-day use.
How much hot water does the 100L cylinder produce?
Approx. 174 litres of usable blended hot water per cycle at 37°C — comfortable for 2–3 occupants throughout the day.
What is the footprint of the cylinder?
The base diameter is Ø 450 mm — it will fit in a 500 mm wide floor space with modest clearance for connections. Height is 895 mm.
Is the pressure relief valve included?
Yes — a PRV is supplied and must be fitted and plumbed to a safe discharge point as a legal requirement under the Water Regulations.
Can it be hardwired rather than plug-in?
Yes — remove the 13A plug from the 1.5 m supply cable and connect to a fused connection unit or dedicated circuit. All work must be carried out by a qualified electrician under Building Regulations Part P.
Is it compatible with Economy 7 or solar PV?
Yes to both. Use a timer for overnight off-peak charging, or pair with a solar diverter such as the myenergi Eddi to use surplus solar generation for free hot water.
What's in the Box
- QH Dual 100 Litre Floor-Standing Electric Water Heater
- Pressure relief valve (PRV / safety valve)
- 1.5 m mains cable with 13A plug
- Multilingual installation and user manual (English included)
