EHC Mercury Electric Combi Boilers 12kW – 26kW
Mercury Electric Combi Boilers 12kW – 26kW
Product Description
The Mercury Electric Combi Boiler is a premium solution for efficient electric central heating and hot water, designed with advanced controls, weather compensation, and service diagnostics. Available in 12kW, 14.4kW (single phase), and 19kW, 26kW (three phase) options, it’s ideal for homes without a gas supply or with gas restrictions. Suitable for radiators and underfloor heating, as well as showers and basins—3-phase models offer sufficient hot water flow rates for bath filling.

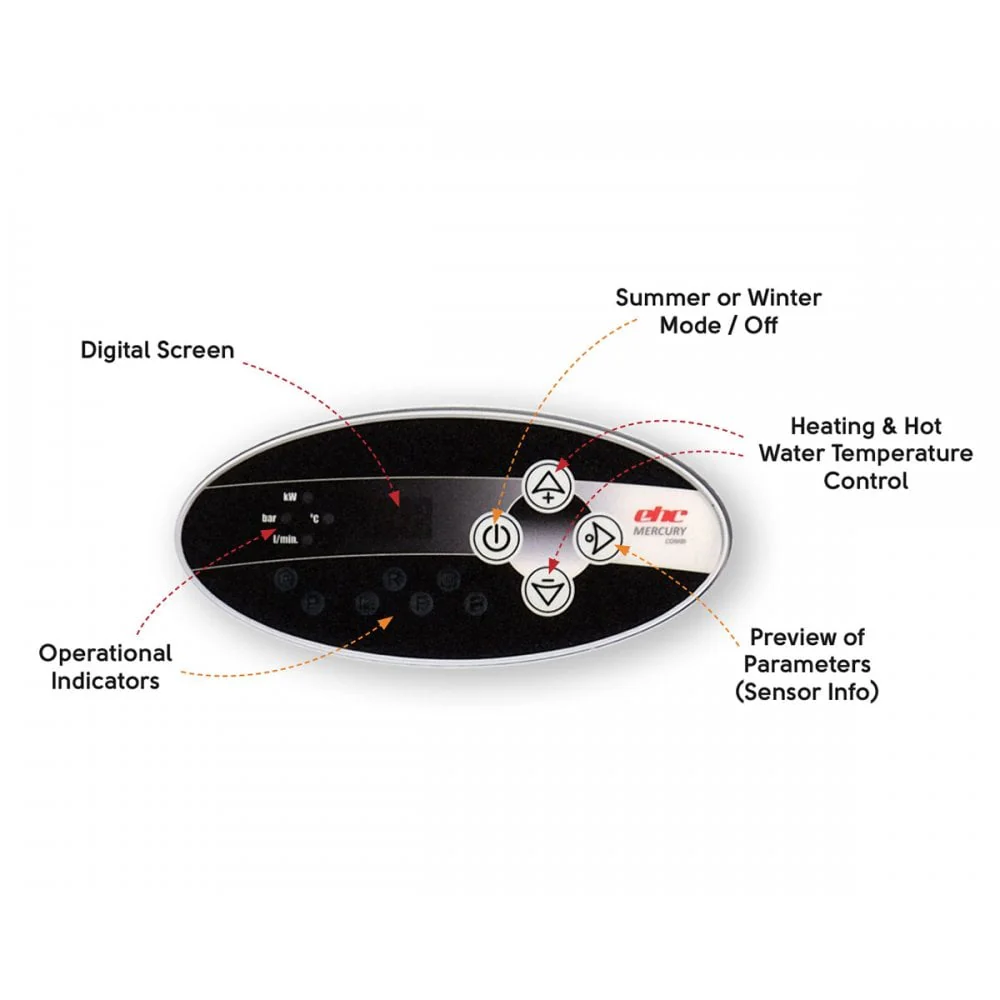

- Digital Control Panel: Adjust operating temperatures with ease (20–85°C heating, 30–60°C hot water).
- High Efficiency: Delivers instant central heating and hot water on demand—no flue required.
- Reliable Output Range: Four sizes — 12kW, 14.4kW (single phase); 19kW, 26kW (three phase) — for property requirements from flats to larger homes.
- Smart Features: Weather compensation, service diagnostics, and safety controls as standard.
- Safety & Warranty: Comprehensive 5-year warranty on all models.
- Applications: Ideal for off-grid homes, listed buildings, bedsits, and properties where emissions or flue access is an issue.
Technical Specifications
| Model | Output | Type | Single/Three Phase | BTU | Dimensions (HxWxD, mm) | Weight | Load Current | Circuit Protection | Min Cable Size | Temperature Range Heating | Temp. Range Hot Water | ERP Rating | Warranty |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MERCURY12KW | 12 kW | Combi | Single Phase | 40,945 | 690 × 451 × 258 | 26 kg | 52A | 63A | 10 mm² | 20–85°C | 30–60°C | D | 5 years |
| MERCURY14.4KW | 14.4 kW | Combi | Single Phase | 49,161 | 690 × 451 × 258 | 26 kg | 60A | 63A | 10 mm² | 20–85°C | 30–60°C | D | 5 years |
| MERCURY19KW | 19 kW | Combi | Three Phase | 64,830 | 690 × 451 × 258 | 26 kg | 3 × 27A | 3 × 32A | 5 × 4 mm² | 20–85°C | 30–60°C | D | 5 years |
| MERCURY26KW | 26 kW | Combi | Three Phase | 88,715 | 690 × 451 × 258 | 19–26 kg | 3 × 35A | 3 × 40A | 5 × 6 mm² | 20–85°C | 30–60°C | D | 5 years |
Mercury Electric Combi Boiler Applications
- Properties without mains gas or with gas boiler restrictions
- Wet central heating with radiators and underfloor heating
- Showers and sink hot water (14.4kW+ for larger DHW load; 19kW/26kW models can fill baths)
- Hybrid setups with hot water cylinders for high DHW demand
What's Included?
- Mercury Electric Combi Boiler (selected output 12kW to 26kW)
- Digital control panel
- Installation guide and warranty
Why Choose Mercury Electric Combi Boiler?
- Wide range (12kW–26kW) for flats to large homes
- Advanced controls, diagnostics, and safety
- No flue, no emissions, ultra-quiet operation
- 5-year warranty and proven reliability
