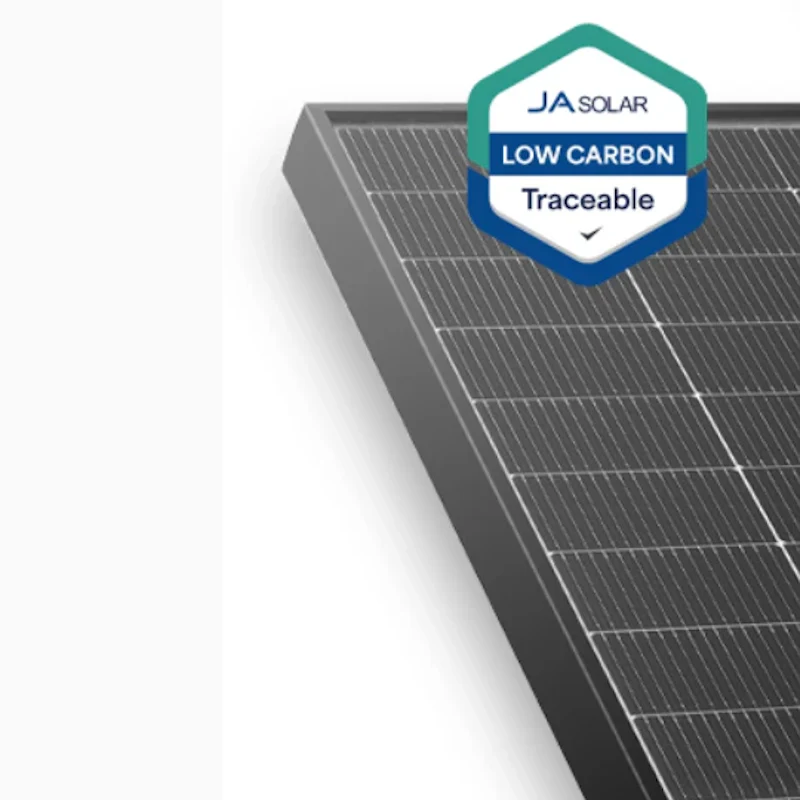

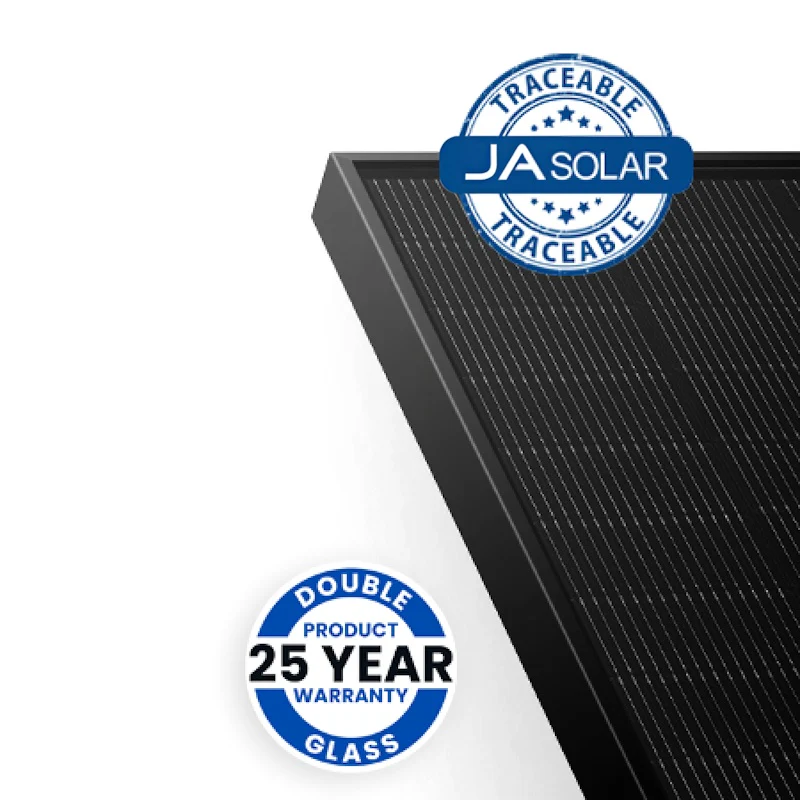

JA Solar 455W N-Type Double Glass Bifacial Solar Panel LB Traceable MC4 Connectors Black Frame

The JA Solar 455W N-Type Double Glass Bifacial LB Traceable solar panel delivers top-tier efficiency and reliability for demanding solar projects. With n-type bifacial cell technology and a robust double-glass design, this panel captures sunlight from both sides to boost total energy production. The black frame provides a modern, attractive look suitable for both residential and commercial rooftops.

Key Features

• Rated Power (Pmax): 455W
• Cell Type: N-Type, 108 half-cells, bifacial
• Module Efficiency: up to 22.8%
• Double glass construction for maximum durability
• Bifacial technology increases total energy yield
• Traceable LB technology for quality control
• Connector Type: MC4
• Frame Colour: Black
• Dimensions: 1762 × 1134 × 30 mm
• Weight: 22.5 kg
• Maximum Power Voltage (Vmpp): 33 V
• Maximum Power Current (Impp): 13.79 A
• Open Circuit Voltage (Voc): 39.5 V
• Short Circuit Current (Isc): 14.56 A
• Temperature Coefficient (Pmax): -0.3%/°C
• Product Warranty: 25 years
• Performance Warranty: 30 years
• Model Number: JAM54D-40-455-LB-TS-MC4
• MCS Reference: BABT 8515-343-455W

Note: Designed for high-output, long-lasting installations. Professional installation is recommended.
