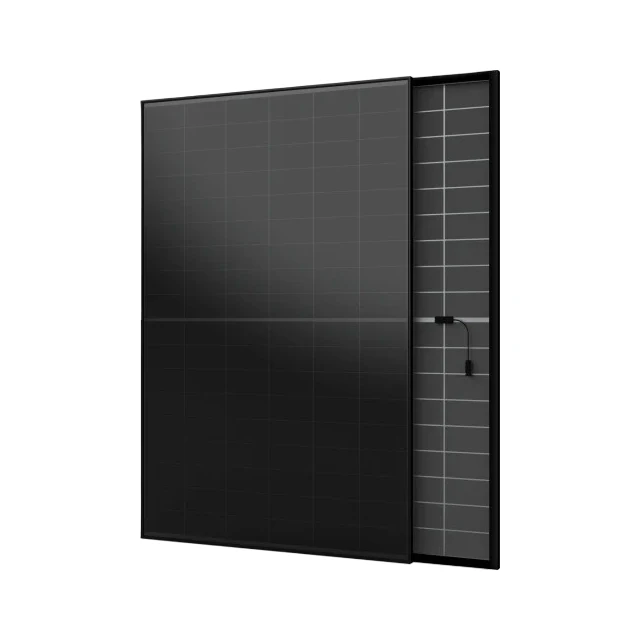

AIKO Neostar 3S 470W N-Type ABC Gen 3 54 Cell Mono Glass Solar Panel All Black

AIKO-A-MCE54Mb-470 | Premium all-black residential module solar panel with third-generation N-Type ABC technology.

Key Features

• 470W power output with 23.5% module efficiency
• N-Type ABC (All Back Contact) cells - zero front busbars for maximum light capture
• Bezel-less mono-glass all-black design for superior aesthetics
• Cell-level partial shade optimisation technology
• 25-year product warranty + 30-year linear performance warranty
• Excellent temperature coefficient: -0.26%/°C
• DC1500V system voltage with Staubli MC4-Evo2 connectors
• Universal clamp zones on long & short sides

Electrical Characteristics (STC)

Nominal Power Pmax	470 W
Module Efficiency	23.5%
Voltage at Pmax (Vmpp)	34.3 V
Current at Pmax (Impp)	13.71 A
Open Circuit Voltage (Voc)	40.7 V
Short Circuit Current (Isc)	14.72 A
System Voltage	1500 V DC
Pmax Temp. Coefficient	-0.26%/°C

Mechanical Specifications

Dimensions (L×W×T)	1762 × 1134 × 30 mm
Weight	20.6 kg
Cell Configuration	108 N-Type ABC cells (54 virtual)
Front Glass	2.0 mm tempered glass
Back Sheet	Polymer all-black backsheet
Frame	All black anodised aluminium
Cable Length	1.2 m Staubli MC4-Evo2

Warranty & Performance

• First year degradation: ≤1%
• Annual degradation: ≤0.35%/year (years 2-30)
• Year 30 performance guarantee: ≥88%
• MCS certified (MR50640718)
• High PID & salt mist corrosion resistance
• Optimised for low-light and high-temperature performance

MPN: AIK-A-MCE54-470-AB-G3

From the Neostar 3S54 460-490W family. 2023 Intersolar Award & Red Dot Design Award winner.
